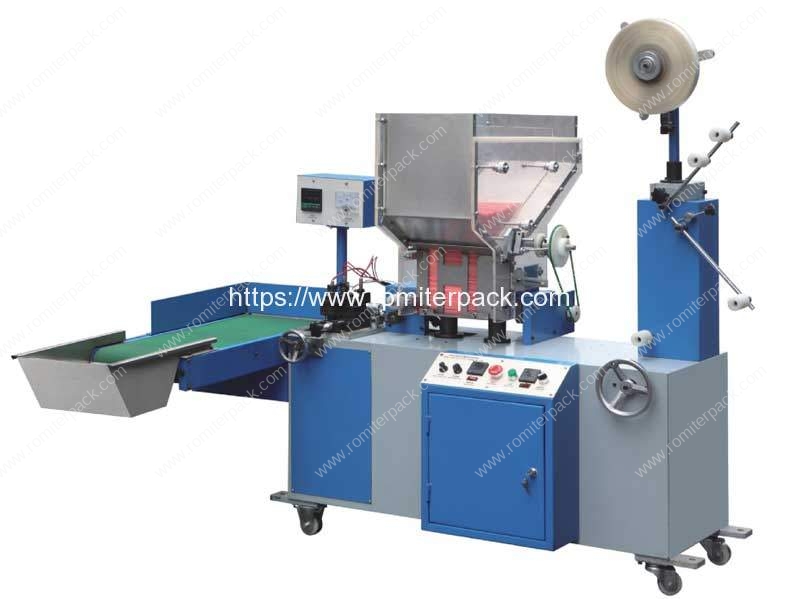

Fully Automatic Plastic Straw Packing Machine is a kind of equipment used to packing the drinking straw into the bag. The complete machine comprises of driving motor, driving system, paper-roll unwinding device, straw-feeding device, automatic sealing device, conveying device for finished products, etc.. With complete set of introduced Italian technology, the machine is highly automatic, and has high production speed and double-color printing (fine printing) function, which can complete printing, feeding and packaging at one time. The machine is convenient to operate and has reliable quality.
Characteristics:
1.Single-piece packaging. Feeding and packing can be completed at one time.
2.There are non-color, single-color or double-color printings available
3. Automatic product counting, product quantity pre-set. And once the pre-set value is reached, the machine will stop and give an alarm. It is convenient for secondary packing.
4.The packing speed is adjustable.
Specification
| Main parts | The machine mainly consists of hopper, straw aligning device, sealing device, transmission system, film location system, cutting system, electric control system etc. | ||
| Power capacity | Driving motor | 1.5kw | |
| Power source | 380v 3phase 50hz | ||
| Specification of the straw | Length | 90mm~210mm | |
| Diameter | Φ3mm~Φ6mm Customizable | ||
| Speed | 750pcs/min | ||
| Specification of Wrapping material | Wrapping material | Materials that can be hot sealed such as BOPP | |
| Diameter of roll | (maximum)340mm | ||
| Width of film | (maximum)250mm | ||

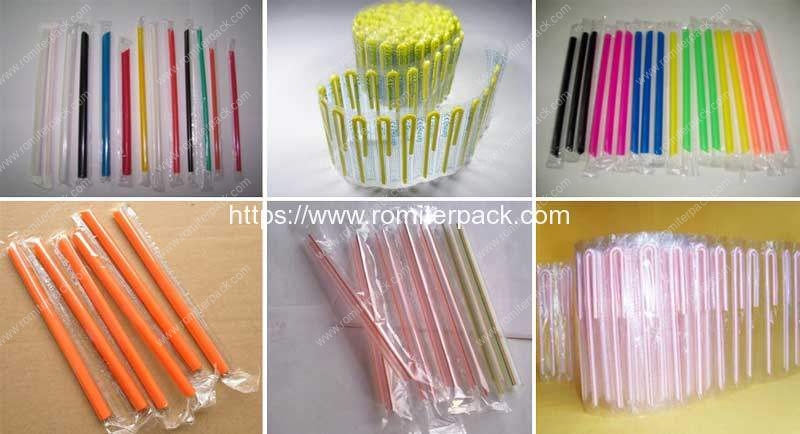

| Specification of Final product | Outer shape | margin is of saw teeth shape | |
| Straw Gap | usually 15mm, also Customizable | ||
| Mechanical dimension | L*W*H | 2.1m*0.85m*1.42mm | |
| Packaged dimension | L*W*H | 2.2m*1m*1.5mm | |
| Weight | 1.1 T | ||
