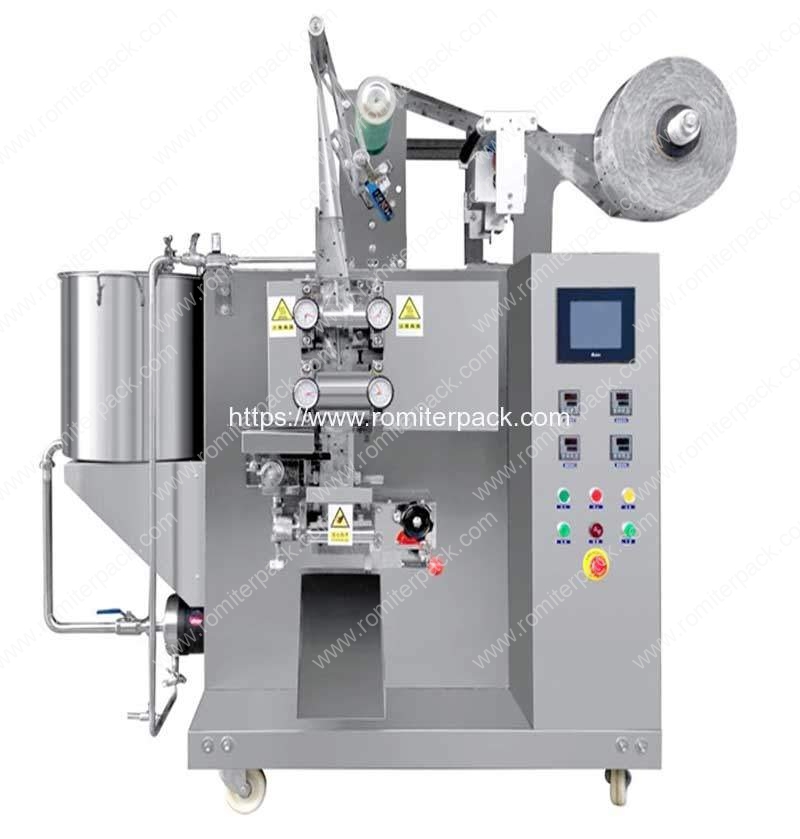

Continuous High-Speed Sauce Filling Packing Machine is used to pack liquid or sauce. It is our high-speed type liquid or sauce packing machine. It can complete measuring, liquid filling, bag sealing, bag cutting and counting at the same time. This High-Speed Liquid Bag Packing Machine adopts PLC and servo motor to control the bag length. This Machine can use PET Film, Al Film, PE Film, PE and PET composite film as packing material
Feature of Continuous Sauce Filling Packing Machine
- The machine is equipped with one set vertical hot rolling device, one set horizontal hot rolling device and one set horizontal cold rolling device.
- Adopted the continuous rollers to seal the sachet. Adopted complete, continuous sealing pattern(chessboard pattern)
- Using the latest diaphragm pump to fill with high filling accuracy.
- Machine offered three types cutting knives(flat knife, serrated(zigzag) knife, dotted line knife) for customer selection. And also equipped with the punching easy tearing mouth device)
- Machine adopted PLC control and touch screen indicating working status
- Servo vertical hot sealing device ensure stepless controlled host machine speed adjustment
- Servo horizontal hot sealing device achieve sachet length stepless adjustment
- Servo horizontal cold sealing device ensure nice sealing appearance and coding effect.
- Intelligent photoelectric eye marking system with the function of automatic orientation function, it can automatically eliminate the influence due to the defective printing of the eye mark or other factors.
- Machine with the film tension revise function which can eliminate the influence from the packing material tension changing during production
- Temperature intelligent control by the thermometer mode, more reliable and stable.
- Blades error recovery device can achieve adjusting the blades angle online
Specification of Continuous Sauce Filling Packing Machine
| Model | RM-CLP60 |
| Sachet Length | 70~140mm or 100-170mm |
| Sachet width | 30-120mm |
| Filling Wt | 1~50g |
| Accuracy | ±(0.1-0.2)g |
| Speed | 50-70 bpm |
| Power | 3kw / AC380V |
| Dimension | L1600mmW1100mmH1700mm |
| Weight | 400kg |
| Film roll out dia | ≤550mm |
| Film roll inner dia | 75mm |
| Film Material | PET/AL/PE,PET/PE,OPP/CPP etc |
Working Video of High-Speed Sauce Filling Packing Machine
