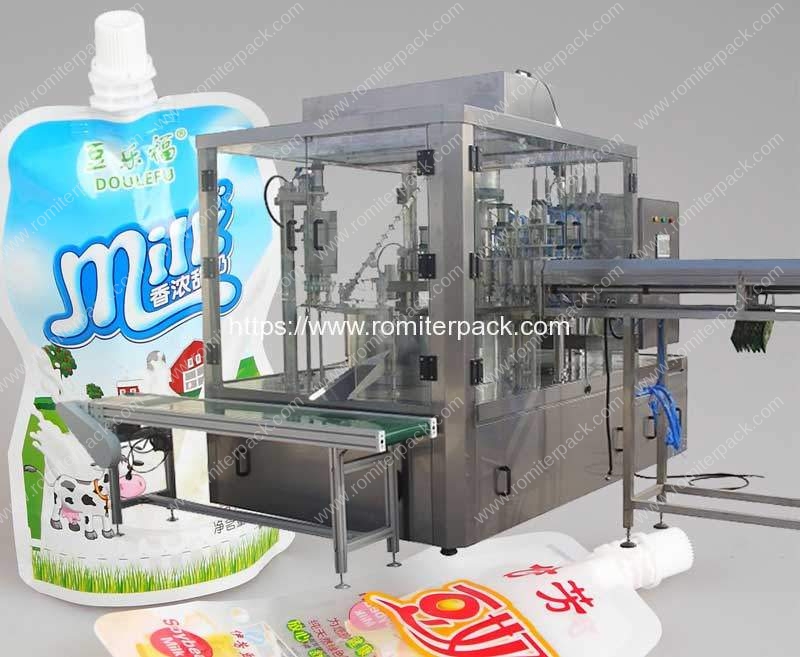

Automatic Nozzle Bag Feeding Liquid Filling Capping Machine is suitable for liquid or semi-liquid nozzle bag filling capping. it can be used for packing jelly, soy milk, yoghourt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent and so on. Romiter Doybag Nozzle Bag Filling Packing Machine complete following process include automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging, which realize whole nozzle bag filling and capping automatic complete. This doybag packing machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients’ requirements.
Working Process of Automatic Nozzle Bag Feeding Filling Capping Machine
- Automatic pouch loading
- Fixed-position filling
- Clean spout
- Arranging caps and putting on caps
- Capping
- Discharging.
Specification of Automatic Doy Bag Feeding Filling Capping Machine
| Model | RM-DPN1A | RM-DPN2A | RM-DPN3A | RM-DPN4A | RM-DPN5A | RM-DPN6A | |
| Filling Head | 1 | 2 | 3 | 4 | 5 | 6 | |
| Packing Speed | bags/h | 600-1000 | 1200-2000 | 1800-3000 | 2400-4000 | 3000-5000 | 3600-6000 |
| Filling Volume | ml | 5-3000 | 5-3000 | 5-3000 | 5-3000 | 5-3000 | 5-3000 |
| Power | kw | 1.5 | 2.5 | 2.5 | 4 | 4.5 | 5 |
| Air Pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Air Consumption | m3/min | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Main Dimension | mm | 1800*1200*1800 | 2100*1350*1880 | 2100*1300*1970 | 2300*1500*1970 | 2500*1600*1970 | 2500*1600*1970 |
| Bag Feeding Dimensoin | mm | 1650*350*1200 | 1600*400*1250 | 1950*400*1400 | 2350*400*1400 | 2350*400*1400 | 2350*400*1400 |
| Weight | kg | 1200 | 1400 | 1600 | 1800 | 2000 | 2100 |
Working Video of Automatic Nozzle Bag Feeding Liquid Filling Capping Machine
